Embedded G Fin Tube StainlessSteel Seamless Tube ASTM A213 TP316L With Aluminum 1060 For Heat Exchangers And AirCoolers

Name: Embedded G Fin Tube StainlessSteel Seamless Tube ASTM A213 TP316L With Aluminum 1060 For Heat Exchangers And AirCoolers
Brand: YUHONG
Price: 1 USD

Quality Embedded G Fin Tube StainlessSteel Seamless Tube ASTM A213 TP316L With Aluminum 1060 For Heat Exchangers And AirCoolers for sale

Brand Name : YUHONG

Model Number : G Fin tube , Embedded Fin tube , Stainless Steel Embedded G Type Fin Tube

Certification : ABS, BV, DNV, CCS, LR

Place of Origin : China

MOQ : 1pc

Price : Negotiable

Payment Terms : T/T,L/C

Supply Ability : According to Clients' requirements

Delivery Time : 7 work days

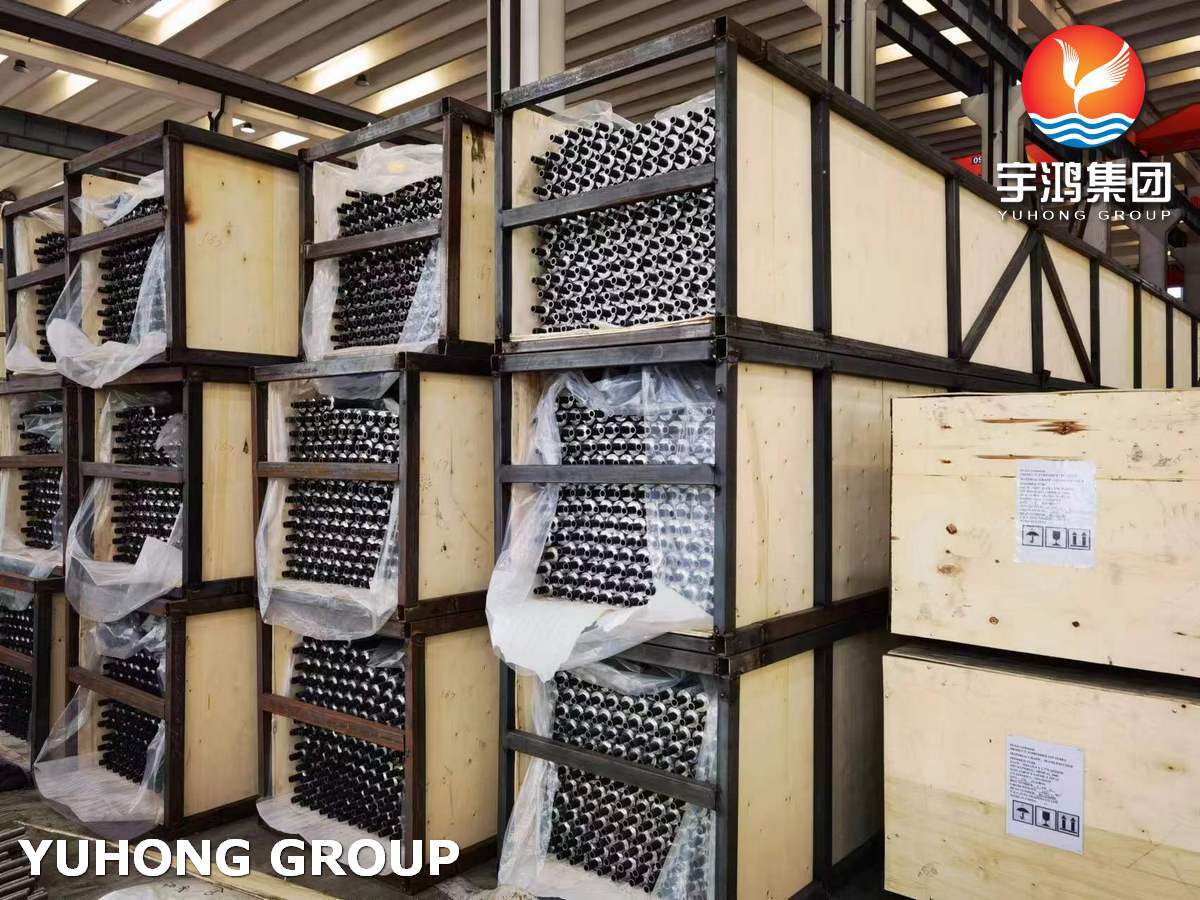

Packaging Details : Ply-wooden Cases with Steel Frames(both ends of pipes have plastic caps)

Product Name : Embedded Finned Tube / G Finned Tube

Base Tube Specification & Material : ASTM A213 316L

Fin Material : Aluminum 1060

Fin Pitch : 2.1-5 MM

Fin Thick : ~0.4 MM

Fin Height : <17MM

Base Tube OD : 15.88-51MM

Application : Heat Exchanger, Air Cooler, Boiler, Condenser

Contact Now

Embedded G Fin Tube Stainless Steel Seamless Tube ASTM A213 TP316L With Aluminum 1060

High-Efficiency Heat Transfer Solution for Heat Exchangers and Air Coolers

Product Specifications

Attribute	Value
Product Name	Embedded Finned Tube / G Finned Tube
Base Tube Specification & Material	ASTM A213 316L
Fin Material	Aluminum 1060
Fin Pitch	2.1-5 MM
Fin Thickness	~0.4 MM
Fin Height	<17MM
Base Tube OD	15.88-51MM
Application	Heat Exchanger, Air Cooler, Boiler, Condenser

Product Overview

The Embedded G Finned Tube ASTM A213 TP316L with Aluminum 1060 Fins is a specialized heat exchanger component designed to enhance heat transfer efficiency. This premium solution combines a stainless steel base tube with aluminum fins tightly embedded in the outer surface, leveraging the strengths of both materials for optimal thermal performance, durability, and corrosion resistance.

YUHONG brand products have been exported to more than 85 countries, with over 35 years of manufacturing experience. Our strict quality control, excellent service, and reliable delivery have earned us repeat business from satisfied customers worldwide.

Material Properties

ASTM A213 TP316L Chemical Composition (%)

C	Si	Mn	P	S	Cr	Ni	Mo
≤0.035	≤1.0	≤2.0	≤0.045	≤0.03	16.0~18.0	10.0~14.0	2.0~3.0

Aluminum 1060 Fins Chemical Composition (%)

Al	Fe	Si	Cu	Mn	Zn	Else
≥99.60%	≤0.35%	≤0.25%	≤0.05%	≤0.03%	≤0.05%	≤0.40%

Mechanical Properties

Component	Mechanical Performance	Key Features
ASTM A213 TP316L Base Tube	Tensile Strength: ≥485 MPa Yield Strength (0.2% Offset): ≥170 MPa Elongation (in 50mm): ≥35% (Longitudinal) / ≥25% (Transverse) Hardness (Max): HB 217	General Corrosion Resistance Pitting & Crevice Resistance Intergranular Corrosion Resistance Oxidation Resistance: Continuous service up to 870°C High-Temperature Strength: Yield strength ≥110 MPa at 540°C
Aluminum 1060 Fins	Tensile Strength: 70-110 MPa Elongation: 15-25% Hardness: 23 HB	Lightweight Design Reduces System Load Ductile For Vibration Absorption

Key Features

High-Efficiency Heat Transfer: Aluminum 1060 Fins (237 W/(m*K)) enhance heat dissipation with fins increasing surface area by 3-5x
Corrosion Resistance & Lightweight: 316L base tube provides excellent corrosion resistance while aluminum fins offer 30%-50% weight reduction compared to all-stainless fin tubes
Reliable Structural Design: Zero fin loosening under extreme conditions with adjustable fin height (5-20MM) and density (8-40FPI)

Applications

Chemical & Petrochemical Industry: Acid/Alkali heat exchangers, crude oil preheaters, chlor-alkali condensers
Power & Energy: Geothermal heat exchangers, gas turbine HRSG (Heat Recovery Steam Generator), nuclear plant auxiliary cooling
Marine & Offshore: Marine engine coolers, LNG carrier heat exchangers, offshore oil cooling
HVAC & Refrigeration: Central AC condensers, chiller evaporators, heat pump systems
Food & Pharmaceutical: Pasteurization equipment, fermentation tank cooling, pharmaceutical dryers
